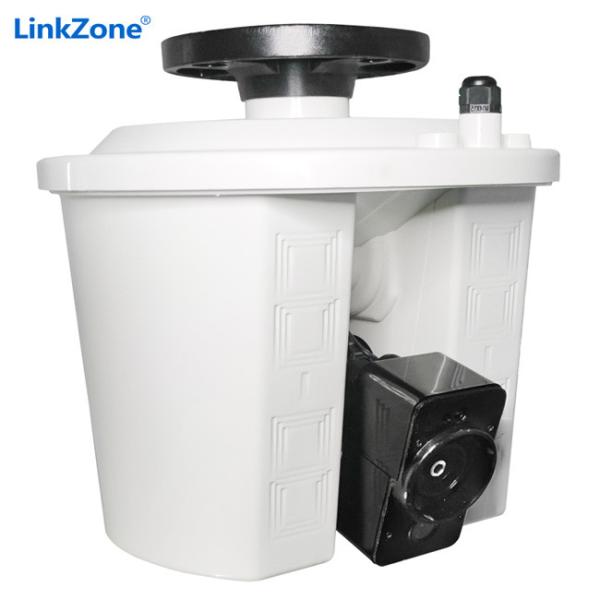

ZDMS Automatic Tracking And Targeting Water Cannon Fire Monitor 10L/S

Place of Origin : Henan, China

Brand Name : LinkZone

Model Number : ZDMS0.6/10S-LZ II

Packaging Details : International Standard Export Packing

Supply Ability : 200000 Set/Sets per Year

Price : Negotiable

Certification : CCCF

MOQ : 1sets

Product Name : Automatic Fire Monitor

Rated working pressure : 0.6MPa

Rated flow : 10L/s

Maximum protection radius(m) : 35m

Jet radius (m) : 39m

Monitoring radius(m) : 40m

Positioning time(s) : ≤30s

Installation height (m) : 6~15m

Horizontal swing angle : 360°

Minimum pitch profile(°) : -90°~+30°

Contact Now

Product Overview

Automatic Fire Monitor
Our Automatic Fire Monitor adopts infrared thermal imaging principle and air-to-air missile tracking technology,It has the functions of real-time measurement and calculation of the real-time temperature of the fire, automatic tracking of the fire, automatic spraying to extinguish, and automatic water shutoff after the fire is extinguished.
FEATURES AT A GLANCE
DIMENSION:350×480mm
NET WEIGHT:8.1KG
MODEL: ZDMS0.6/10S-LZ II
SENSOR:IR SENSOR
VOLTAGE:220V
COMMUNICATION METHOD:CAN
KEYWORD:AUTOMATIC FIRE MONITOR
ZDMS Automatic Tracking And Targeting Water Cannon Fire Monitor 10L/S
PRODUCT SPECIFICATIONS
No
Item
Standard &Requirements
Inspection results
1
Rated working pressure (MPa)
≤0.8
0.6
/
2
Rated flow (L / s)
5×(1±8%)
5.05
/
3
Maximum protection radius(m)
≥30
30
/
4
Jet radius (m)
≥34
34
/
5
Monitoring radius(m)
≥40
40
/
6
Positioning time(s)
≤30
29.5
29.9
7
Installation height (m)
6~15
6
15
8
Horizontal swing angle(°)
≥180
360
9
Minimum pitch profile(°)
-90~+30
-90~+30
10
Diameter of water-inlet(mm)
Φ 34.5 ± 0.5
Φ 34.5 ± 0.5
11
Diameter of water-outlet(mm)
Φ 15.5 ± 0.5
Φ 15.5 ± 0.5
PRODUCT CONFIGURATION
ZDMS Automatic Tracking And Targeting Water Cannon Fire Monitor 10L/S
ZDMS Automatic Tracking And Targeting Water Cannon Fire Monitor 10L/S
SALES AND SERVICE NETWORK
ZDMS Automatic Tracking And Targeting Water Cannon Fire Monitor 10L/S
Successful Project
ZDMS Automatic Tracking And Targeting Water Cannon Fire Monitor 10L/S
FAQ
Q1: Are you a manufacturer?
A1: Yes. We are a professional manufacture of automatic fire monitor, we have the most advanced technology.
Q2: What certificates have you got?
A2: We only have CCC and ISO certificates at present. We will do the FM certificate later.
Q3: What are the advantages of your Automatic Fire Monitor?
A3: Our automatic fire monitor integrates the following functions: 1. Remote automatic fire monitoring. 2. Fire Alarming. 3. Automatic Fire Extinguishing.
